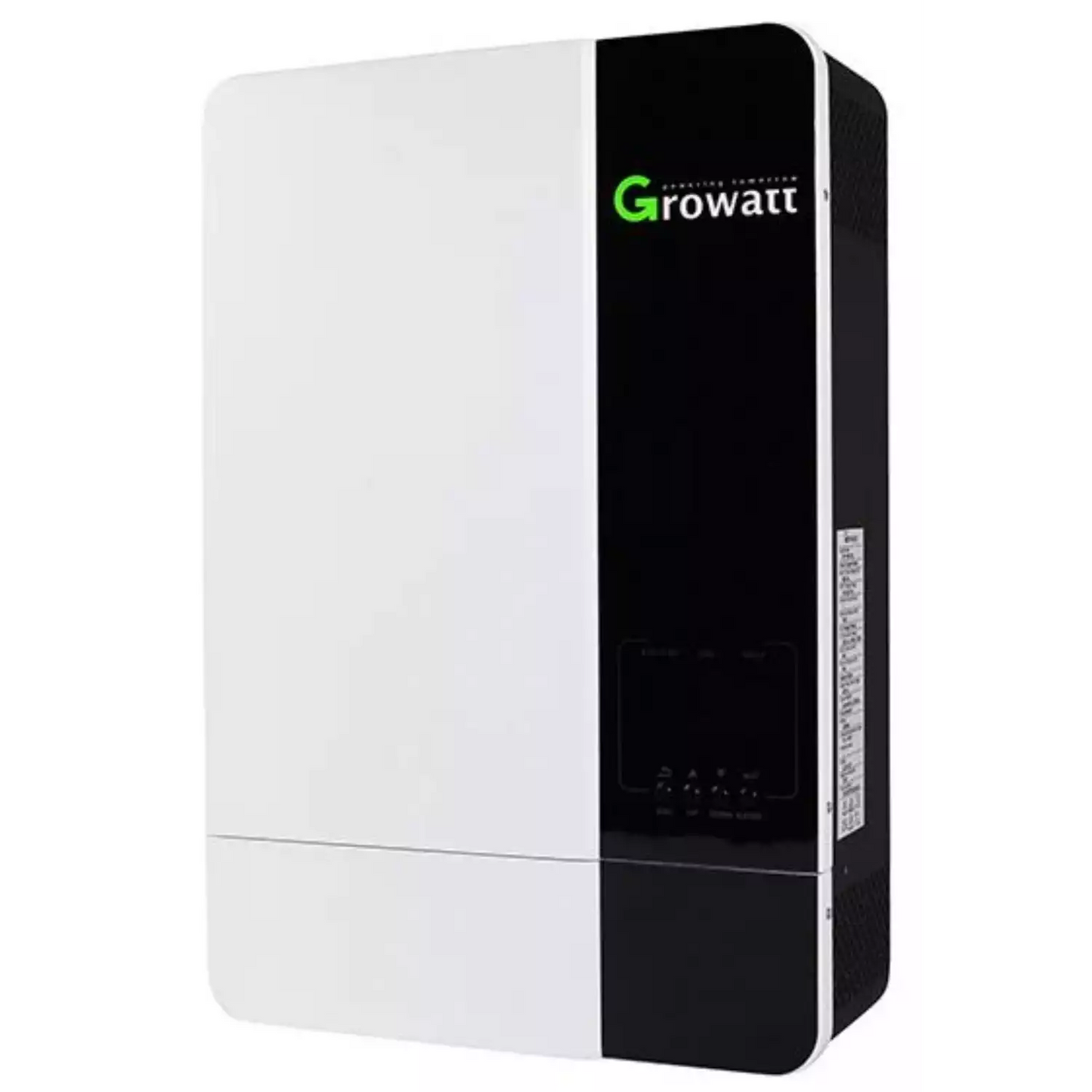

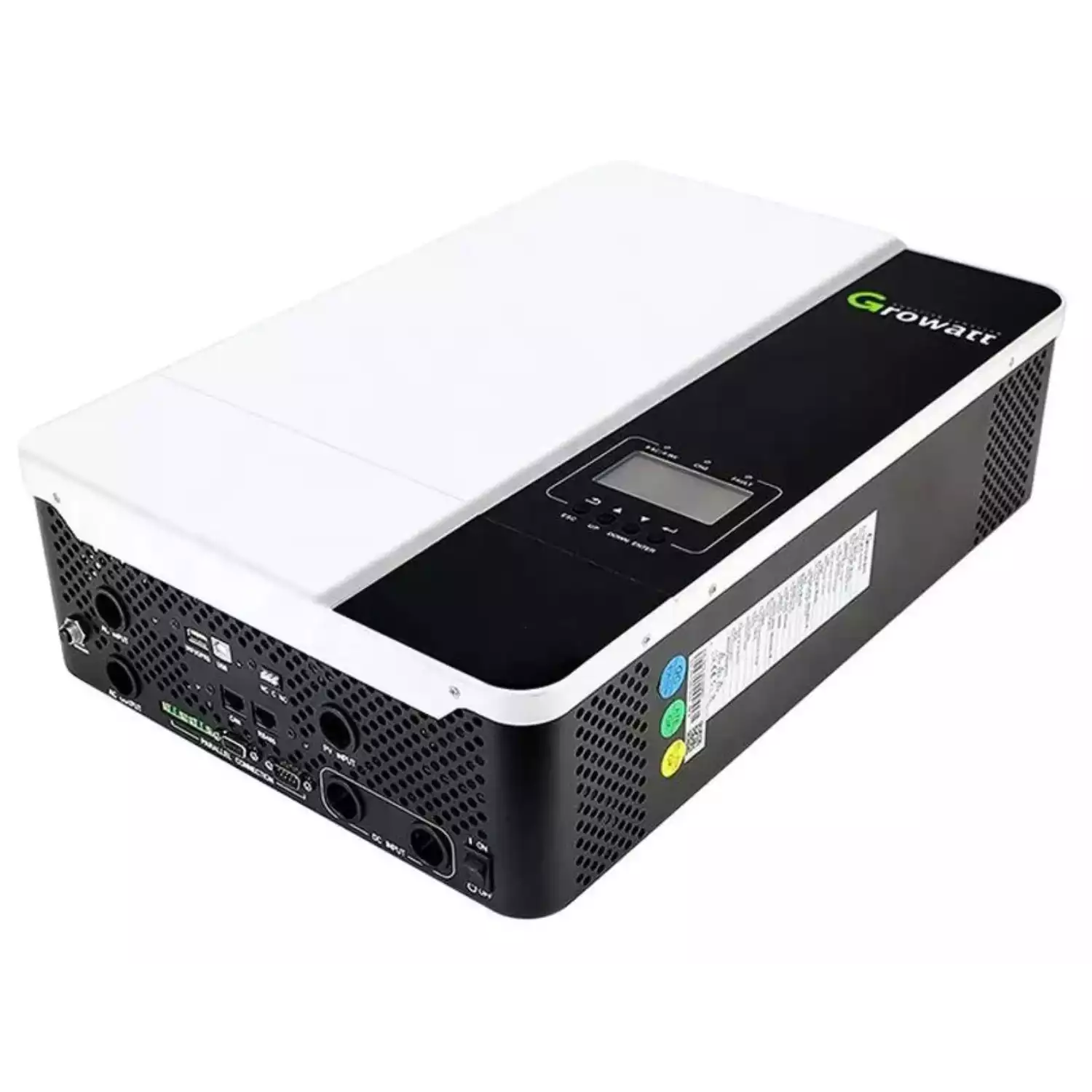

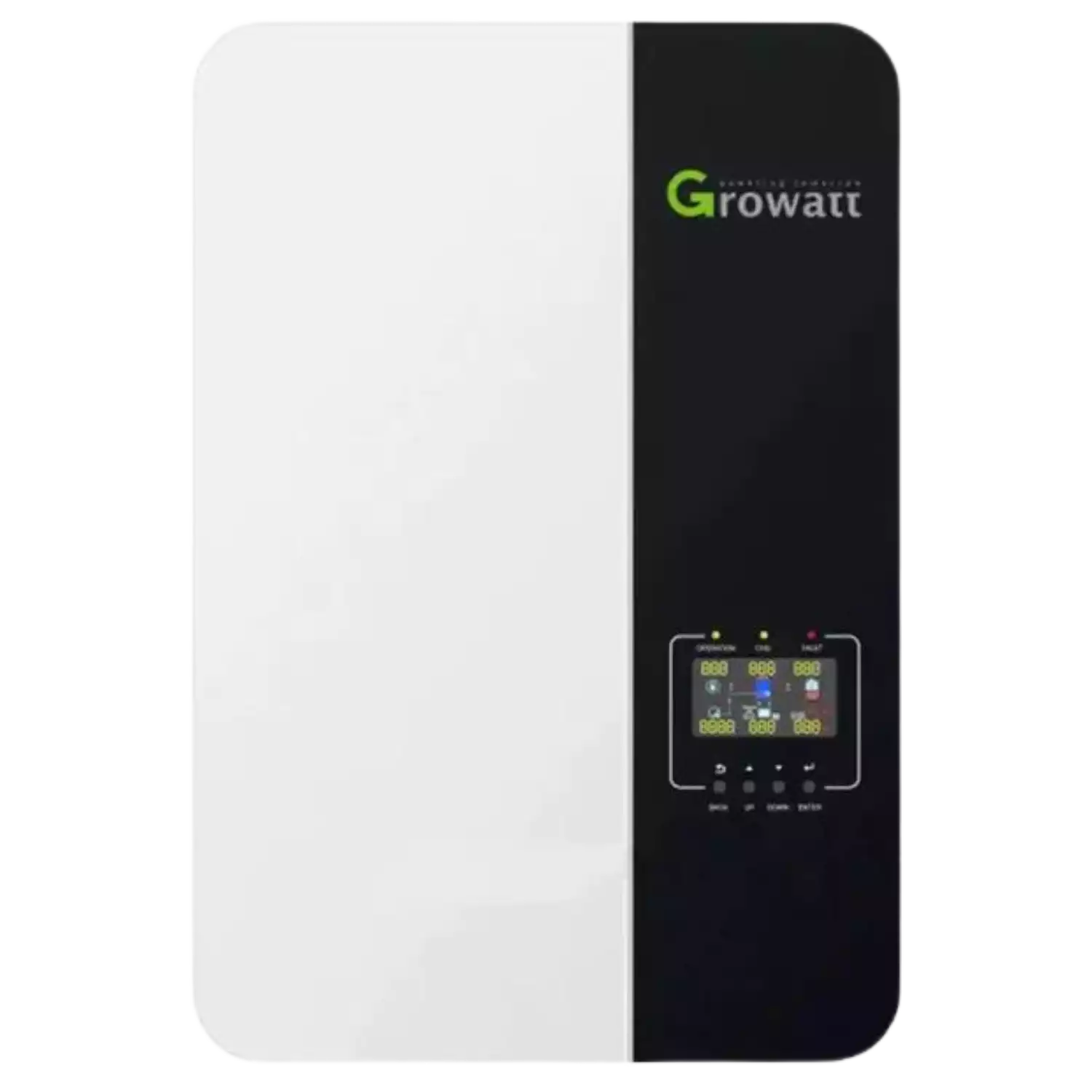

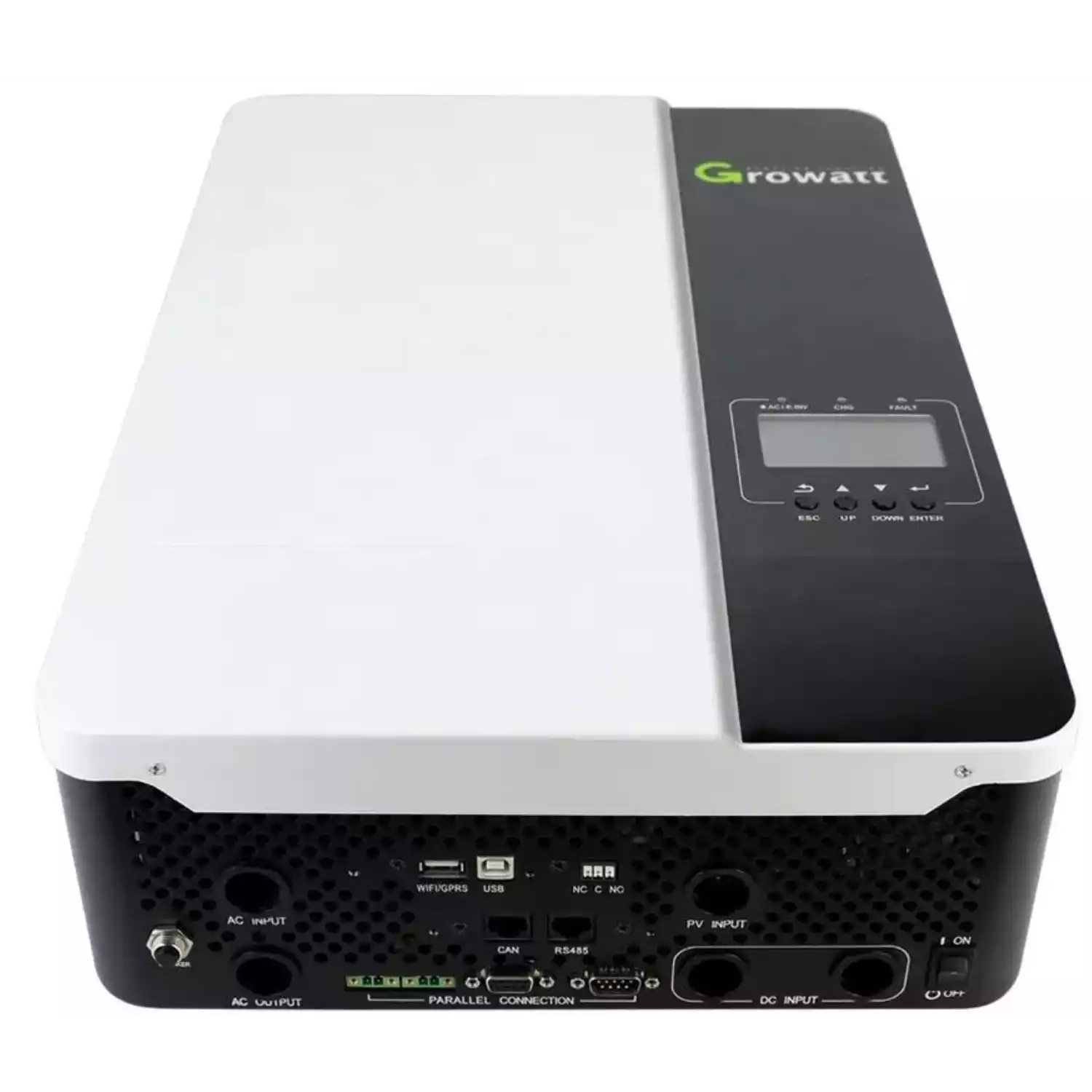

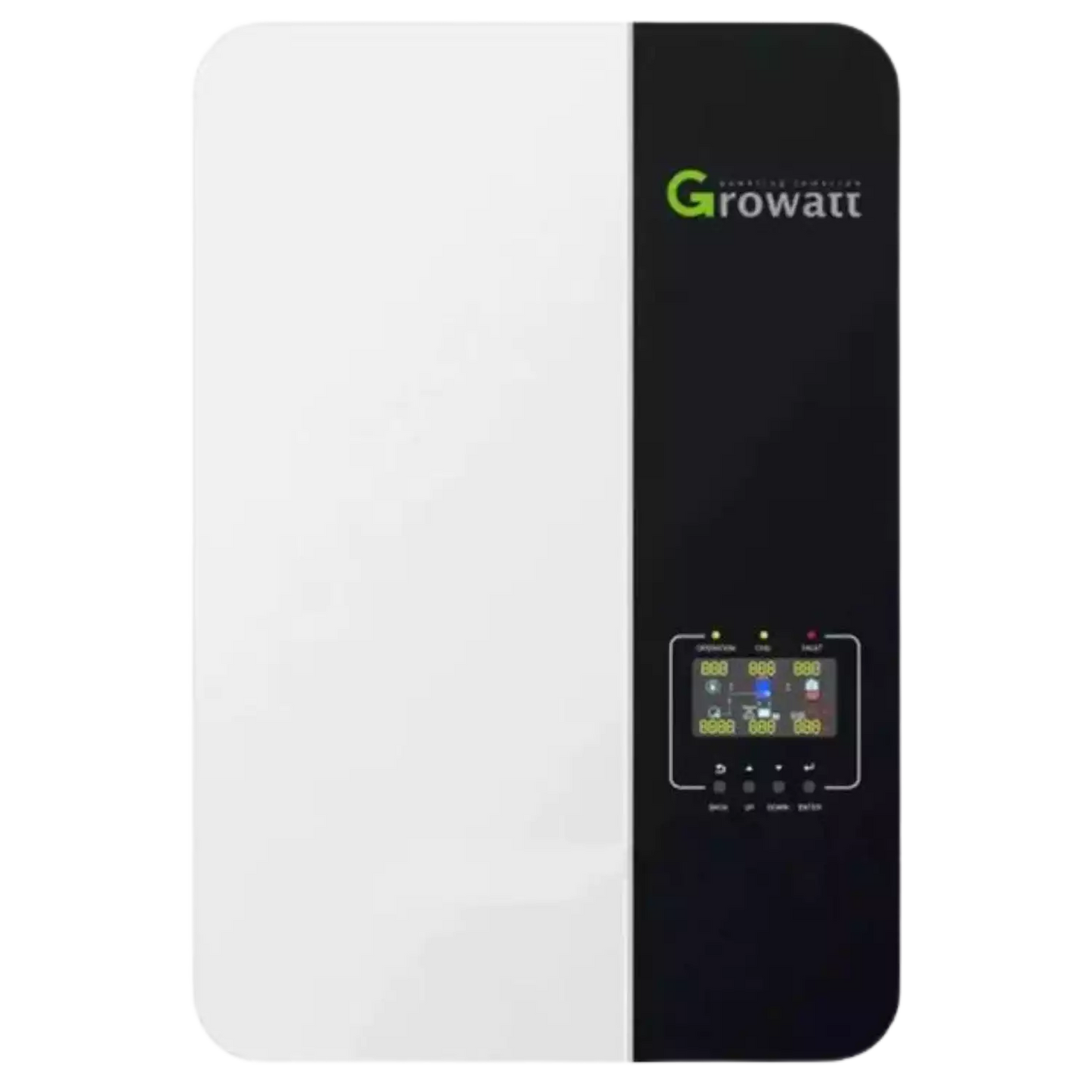

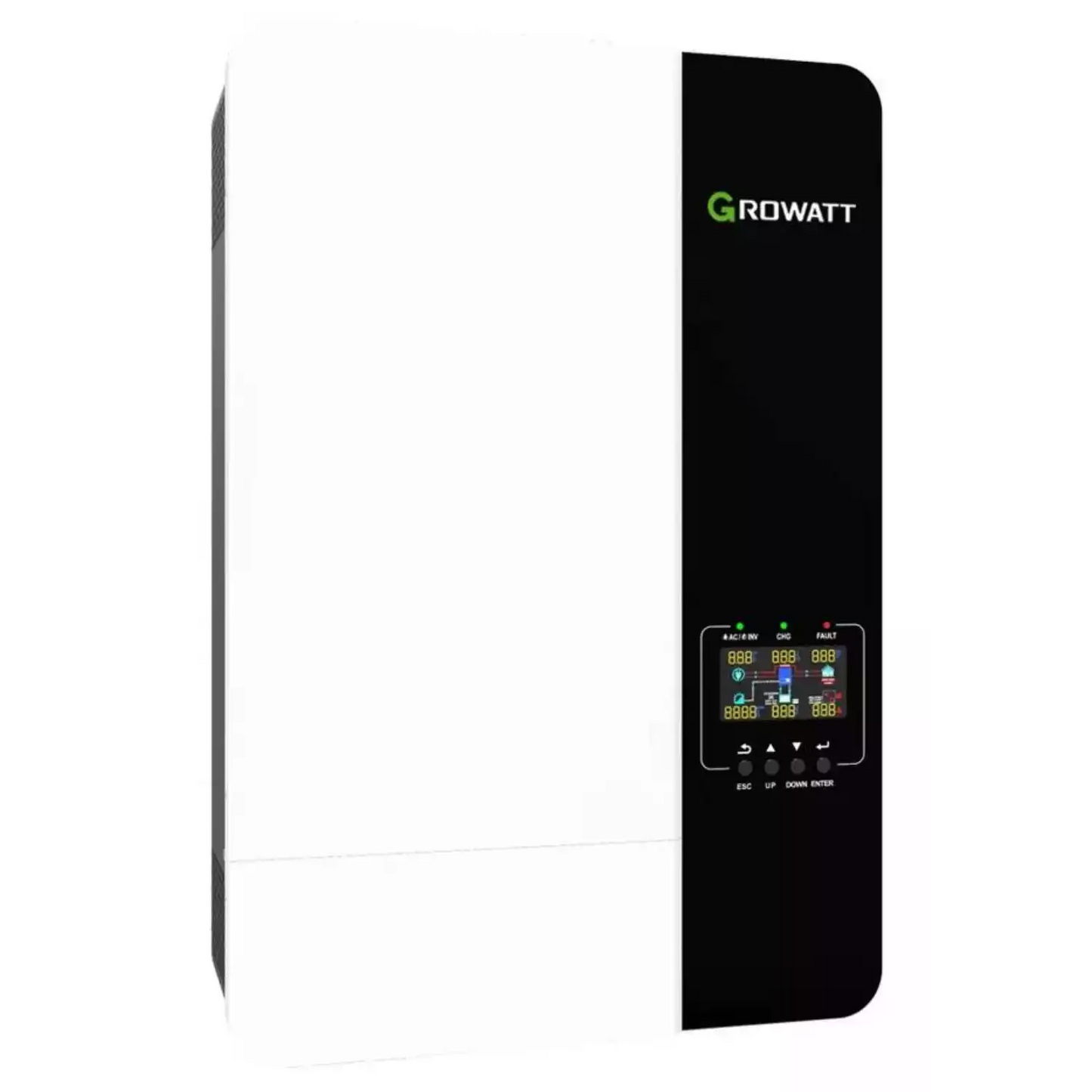

Growatt 5kW Hybrid Inverter

The Growatt Hybrid Inverter SPF 5000 ES is a versatile and efficient off-grid inverter designed for backup power and self-consumption applications. With a 48V DC battery voltage and the option to use lithium or lead-acid batteries, this inverter provides reliable and flexible power solutions. Here's a detailed overview:

Key Features:

1. Integrated MPPT Charger Controller:

   • Optimizes solar power harvesting for maximum efficiency.

2. Equalization Charging Function:

   • Enhances battery performance and lifespan.

3. Battery Compatibility:

   • Supports both Lithium and Lead-Acid batteries.

4. Max PV Input up to 450VDC:

   • Allows for higher solar input voltage, optimizing solar power utilization.

5. Grid or Solar Input Priority:

   • Flexibility to choose between grid and solar input based on user preferences.

6. WIFI/GPRS Remote Monitoring:

   • Enables remote monitoring and control for enhanced system management.

7. Parallel Operation:

   • Up to 6 inverters can be paralleled for increased power output.

8. PV & Grid Power Combine:

   • Combines PV and grid power if solar energy is insufficient to meet the load.

9. Flexible Charging Schedule:

   • Allows the user to set a customized schedule for charging and discharging batteries.

General Specifications:

• Module: SPF 5000 ES
• Battery Voltage: 48VDC
• Battery Type: Lithium/Lead-acid

Inverter Output [AC]:

• Rated Power: 5000W
• AC Voltage Regulation (Battery): 230VAC ± 5%
• Surge Power: 10000VA for 5 sec
• Efficiency (Peak): 93%
• Waveform: Pure sine wave
• Transfer Time: 10ms – 20ms

Solar Charger:

• Maximum PV Array Power: 6000W
• MPPT Range @ Operating Voltage: 120VDC – 430VDC
• Maximum PV Array Open Circuit Voltage: 450VDC
• Maximum Solar Charge Current: 100 A

AC Charger:

• AC Charge Current: 80A
• AC Input Voltage: 230 VAC
• Selectable Voltage Range: 230 VAC
• Frequency Range: 50 Hz/60 Hz (Auto sensing)

Physical:

• Protection Degree: IP20
• Dimensions: 330 x 485 x 135mm
• Weight: 12 kg

Installation Requirements:

• All installations must be done by a qualified electrical wireman or Master electrician.
• A valid electrical certificate of compliance (COC) must be issued after installation, complying with SANS 10142.
• Warranty claims require installation photos, a valid COC, and proof of a qualified wireman/master electrician.

This Growatt Hybrid Inverter ensures a reliable and efficient power solution for both backup and self-consumption, with a focus on user-friendly features and system flexibility.

Warranty: This product has 2 years warranty.
